TFX/SB
Forestry Mulcher for excavator
Download brochure
Request information

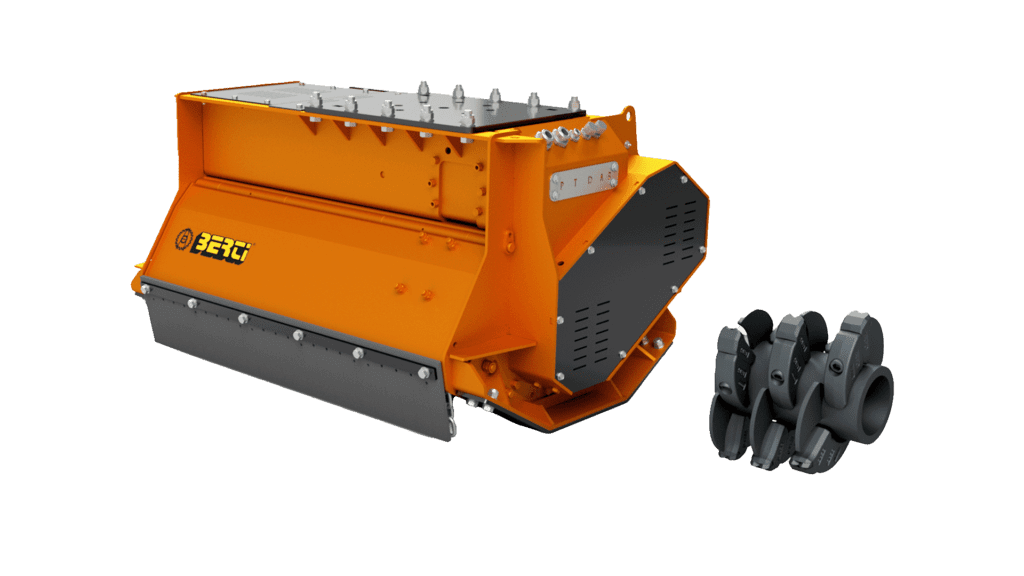

TFX/SB
The TFX/SB is a forestry mulcher designed for 12 to 16-ton excavators, perfect for mulching bushes, branches and plants up to 7.85” in diameter.
Its rotor, equipped with fixed hammers with tungsten carbide tips type “XF1”, delivers excellent performance especially on wood. The double chassis provides added strength and reliability, allowing the machine to handle the toughest tasks without compromising durability
The optional AVT motor (Automatic Variable Torque) ensures optimal performance by increasing torque only when needed, preventing rotor stalling.
It is available in two sizes: 39”, 47” and 55″.
Where to use the mulcher
APPLICATIONS
Forest maintenance e reclamation
Vegetation maintenance
Land clearing
Standard Equipment
- Double chassis.
- Belts trasmission.
- SMOOTH CUT Forestry rotor Ø 410 mm.
- Side skids with wear undershoes.
- Fixed hammers with tungsten carbide tips type “XF1”
- Counter blades
- Hydraulic piston motor with drain line (45cc)
- Hydraulic valves block “Berti Fluid Box” (max 160 lt/min)
- Hydraulic hoses with explosion-proof sheats (L= 2,50 mt.)
- Under plate for mount hitch.
- Accident prevention protections according to EC directives
Optional
- Mount hitch & pins, made to measure
- Hydraulic adjustment of rear hood
- Hydraulic rotation device with hoses* (only with mount hitch central position)
- Kit Diverter Valve, ON/OFF, for 1 additional function with button panel
- Kit Diverter Valve, Proportional-Auxiliary, for 1 additional function with button panel
- Kit Diverter Valve, Proportional-Auxiliary, for 2 additional function with button panel
- Hydraulic piston motor 56cc (mod. 120-140)
- Hydraulic piston motor 63cc (mod. 120-140)
Automatic Variable Torque piston motor (45-63cc)
Tools
A tool for every need

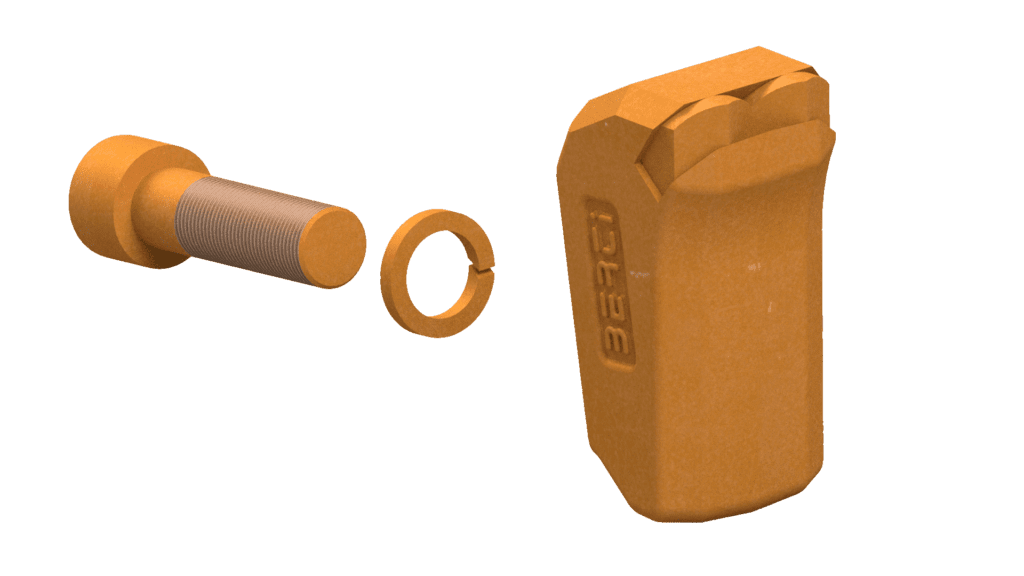

Fixed BERTI hammers with tungsten carbide tips type “XF1”
